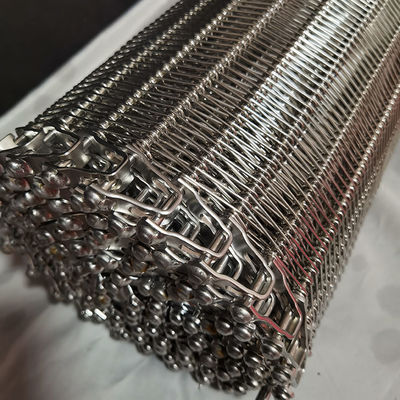

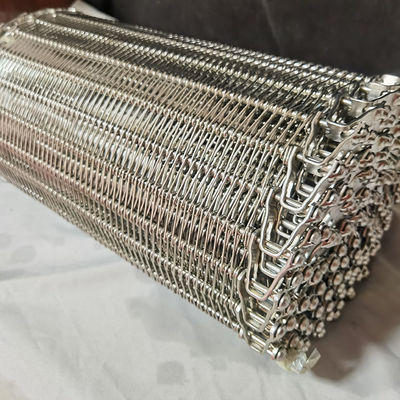

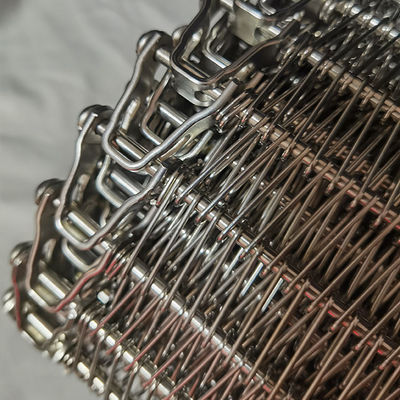

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

Marchio:	COMESH
Numero di modello:	CM-CB2511201
Moq:	2 m
prezzo:	USD35-55 per meter
Condizioni di pagamento:	D/A, D/P, T/T, Western Union,
Capacità di approvvigionamento:	500m alla settimana

Informazioni dettagliate

Descrizione del prodotto

Informazioni dettagliate

Luogo di origine:

Cina

Certificazione:

FDA

Materiale:

Acciaio inossidabile 304

Larghezza:

800 mm, o su misura

Lunghezza:

6 m per rotolo, o su misura

Diametro del filo:

1.5 mm, o personalizzato

Diametro dell'asta:

6 mm, o personalizzato

Tono a spirale:

8 mm, o personalizzato

Passo della catena:

38,1 mm o su misura

Imballaggi particolari:

I pp insaccano l'interno e poi la cassa di legno fuori

Evidenziare:

304 stainless steel conveyor belt

chain driven freezer conveyor belt

balance weave spiral wire mesh

Descrizione del prodotto

304 Stainless Steel Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt

This kind of Balance Weave Spiral Wire Mesh Chain Driven Freezer Conveyor Belt is especially designed for spiral or round conveyor as well as straight-running conveyor. With the ability to side flex, the belt can also be used for conveyors arranged to go around obstacles.The flexible rod belt is popular in the food industries, including cooling, cooking or freezing products.

Product Specifications

Material	Stainless steel 304, or customized
Width	800 mm, or customized
Length	6 m per roll, or customized
Wire Diameter	1.5 mm, or customized
Rod diameter	6 mm, or customized
Spiral pitch	8 mm, or customized
Chain pitch	38.1 mm, or customized

Available Materials

1) AISI 314 (1150°C)

2) SUS 310S (1090°C)

3) SUS 330 (1150°C)

4) SUS 304 (400°C)

5) SUS 316 (1000°C)

6) Super alloy Cr20Ni80 (1250°C) electrical furnace wire

7) SUS 321 (750°C)

8) SUS 410 (700°C)

9) SUS 430 (700°C)

10) Various metal materials as per your requirements

Key Features

Material: High-quality stainless steel construction provides excellent resistance to corrosion and high temperatures
Design: Spiral wire mesh offers flexibility and strength for transporting various products
Chain Driven: Smooth and reliable movement along the conveyor path
Customization: Available in various sizes, wire diameters, and mesh configurations

Applications
